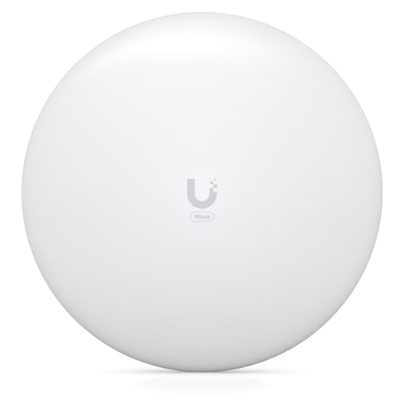

STATION PTMP COMPACT 60 GHZ UBIQUITI WAVE-LR-EU VEL.TRASM.2GBPS-5 GHZ WEATHERPROOF BACKUP RADIO 1P GBE RJ45

 429,00

Mechanical. Dimensions: 424.4 x 166.2 mm. Weight:

7 disponibili

COD: BRV-52.5619 Categorie: , ,

Descrizione

La STATION PTMP COMPACT 60 GHZ UBIQUITI WAVE-LR-EU è la soluzione ideale per aziende e professionisti che necessitano di una connessione wireless ad alta velocità e affidabilità su lunghe distanze. Perfetta per connettere sedi remote, telecamere di sicurezza, o per fornire connettività a banda larga in aree rurali, questa stazione offre prestazioni eccezionali grazie alla sua tecnologia avanzata a 60 GHz.

Goditi una connessione stabile e veloce fino a 2 Gbps, ideale per applicazioni che richiedono una larghezza di banda elevata. In caso di interferenze o problemi sulla frequenza principale, la radio di backup a 5 GHz integrata garantisce una continuità del servizio senza interruzioni. La sua robusta costruzione weatherproof (IPX6) assicura un funzionamento affidabile anche in condizioni ambientali avverse.

Facile da installare e gestire tramite la piattaforma UISP, la STATION PTMP COMPACT è la scelta intelligente per chi cerca una soluzione wireless potente, versatile e resistente. Ottimizza la tua rete aziendale e porta la connettività ad un livello superiore.

Informazioni aggiuntive

Peso6,5 kg
Dimensions

424.4 x 166.2 mm

Without mount

2.6 kg

With mount

3.8 kg

Enclosure material

UV stabilized plastic

Mount material

Stainless steel

Pole mount diameter

25 to 76.2 mm on pipe outer diameter

Wind loading

286 N at 200 km/h

Weatherproofing

IPX6

Processor

Dual-core ARM Cortex -A53 at 1 GHz

Memory

DDR3L 512 MB

Networking interface

1x GbE RJ45 port

Max. power consumption

20W

Power supply

48V DC, 0.65A gigabit PoE adapter (Included)

GPS

Blue: receiving at least (4) GPS satellite signal

Button

Factory reset

LEDs

Power, Ethernet, GPS, link

Ambient operating temperature

-40 to 60 C (-40 to 140 F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE

NDAA Compliant

Yes

Operating mode

PtMP station, PtP

Ubiquiti specific features

Wave AI, discovery protocol

Services

UISP, ping watchdog, NTP client, SNMP

Tools

Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey, traffic shaping

Network

Bridge/Router mode

Application requirements

UISP: Version 1.4.5 and later

Total throughput

2 Gbps

Max. range

8+ km

Encryption

WPA2-PSK (AES)

Operating frequency

5150 – 5875 MHz

Channel bandwidth

20, 40, 80 MHz

Operating channels

58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz

Modulation

BPSK (1 2), QPSK (1 2), QPSK (3 4), 16QAM (1 2), 16QAM (3 4), 64QAM (2 3), 64QAM (3 4), 64QAM (5 6), 256QAM (3 4), 256QAM (5 6), 1024QAM (3 4), 1024QAM (5 6)

Antenna gain

22 dBi

Polarization

Dual-linear

Azimuth

3 dB 8

Elevation

3 dB 8

WiFi standard

802.11ax (WiFi 6)

Cross-pol isolation

20 dB

Flashing white

bootup in progress

White

5GHz link

Blue

60GHz link

Flashing blue

locate in progress

Blue/white

firmware upgrade in progress

Ethernet

Flashing blue: Ethernet traffic detected
